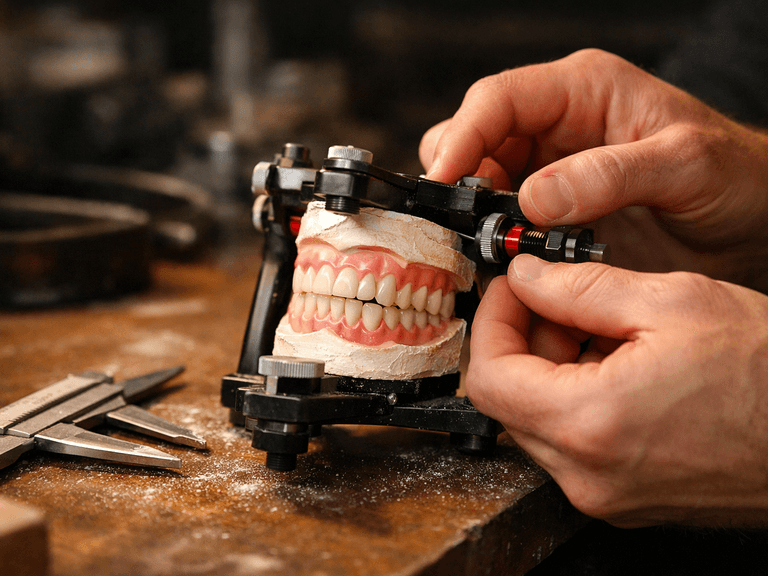

Understanding Occlusal Vertical Dimension: A Lab Perspective on Getting It Right

Occlusal vertical dimension, or OVD, is the vertical relationship between the maxilla and mandible when the teeth are in maximum intercuspation. It sounds simple on paper. In practice, OVD is the single measurement that most often gets a full-arch case sent back to the lab for adjustment, and it is the variable that quietly compounds across every other decision: phonetics, esthetics, muscle tone, joint loading, and how the patient feels at the six-month recall.

We write this from the bench. Dani Dental has been fabricating restorative and removable prosthetics in Arizona since 1993, with the Dobrikov family on the bench across three generations, and the cases that come back for OVD-related adjustment almost always share the same root cause: the records sent to the lab did not capture what the clinician saw in the chair. This post is a working reference for general dentists, prosthodontists, and surgeons who want fewer remakes and shorter delivery appointments.

Why OVD Matters More Than Most Single Measurements

When OVD is off by even 2 to 3 mm, the downstream effects are not subtle. Open the bite too much and the patient reports fatigue in the masseter and temporalis within days, lisping on sibilants, and a strained lower-third esthetic. Close it too much and you lose interocclusal space, crowd the tongue, accelerate wear on the new prosthetic, and risk angular cheilitis from overclosure of the commissures.

For a hybrid or All-on-X case, OVD also drives the prosthetic envelope. The vertical space available for the framework, the acrylic, and the denture teeth is set the moment OVD is recorded. Get it wrong, and the technician is choosing between a framework that is too thin to be strong or denture teeth that are too short to be esthetic. Neither is a problem the lab can solve without going back to the chair.

For a single-arch crown and bridge case in a worn dentition, OVD decides whether the new restorations have room to be built to ideal contour or whether the technician has to compromise occlusal anatomy to fit the space the clinician left. On the bench we can see immediately when a case was prepped without an OVD plan: the dies stack up, the wax-up has no clearance, and the call back to the office is the part of the day nobody wants.

The Three Methods, and What Each One Actually Tells You

There is no single gold-standard method to establish OVD. Most clinicians use a combination, and the lab benefits when we know which methods produced the records.

Physiologic rest position minus interocclusal space.The patient is brought to physiologic rest, and 2 to 4 mm of freeway space is subtracted to arrive at OVD. This is the classical Niswonger method, and it remains useful as a starting reference. It is operator-dependent, posture-dependent, and varies with patient anxiety, so it is rarely sufficient on its own for a full-arch case.

Phonetic evaluation.Closest speaking space, the s sound, and the f and v sounds against the maxillary incisal edges give functional confirmation. If the patient lisps at the wax try-in, OVD or anterior tooth position is wrong. If the f sound is breathy, the maxillary incisal edges are too short or too far palatal. These checks happen at the wax try-in, and we ask clinicians to do them deliberately and report what they hear before approving for processing.

Facial measurement and esthetic landmarks.Willis gauge measurements, the distance from subnasale to gnathion compared to pupil to commissure, and lower-third facial proportion all give external reference points. Pre-extraction records, old photographs, and existing well-fitting prostheses are gold when they exist.

On complex cases we ask for at least two of these three to agree before we process. When they disagree, the case is not ready for the lab yet.

What the Lab Needs From You

The records that let us deliver a case at the correct OVD on the first try are not exotic. They are specific.

1. A face-bow transfer or, on digital cases, a properly oriented maxillary scan with a recorded occlusal plane reference.
2. A centric relation record taken at the planned OVD, not at the patient's habitual closure. If you are opening the bite, say so, and tell us by how much.
3. Photographs of the patient at rest and in maximum smile, ideally with a millimeter reference visible.
4. For full-arch and hybrid cases, a wax rim or digital denture try-in approved in the patient's mouth with phonetics, esthetics, and lip support all confirmed.
5. A note on the prescription stating the OVD method used and the target opening, in millimeters, from the patient's current closed position.

When a case arrives with all five, the bench moves directly to articulation and wax-up. When one is missing, we call. Every Dani case ships with the technician's direct line so the call goes to the person actually working on the prosthetic, and our average response on OVD clarification questions runs under four business hours.

Common OVD Failures and How They Show Up at Delivery

A few patterns repeat often enough to be worth naming.

The habitual-closure trap.The CR record was taken at the patient's habitual closure, not at the planned new OVD. The case is fabricated to a vertical the patient cannot comfortably reach, and the bite feels high at delivery on every quadrant.

The unilateral wear assumption.The clinician assumed the worn side was the correct OVD and built up the unworn side to match. In reality both sides had lost vertical and the new restorations come in short of ideal proportion.

The try-in skip.A hybrid case was processed without a verified wax try-in because the patient was traveling. Phonetics were not checked, lip support was not confirmed, and the finished prosthetic delivers with a lisp the patient now associates with the new teeth.

None of these are lab errors. All of them are preventable with one more appointment or one more photograph before the case ships to processing. The cost of that appointment is always less than the cost of a remake.

Building OVD Discipline Into the Workflow

For practices doing five or more full-arch cases a year, the highest-leverage change is a documented OVD protocol the office follows on every case, with a standard records packet sent to the lab. For DSOs running across multiple locations, the same protocol applied consistently across offices is what makes lab quality predictable across the group. We work directly with practice managers on case-submission templates so the records that arrive on case 1 are the same records that arrive on case 100.

OVD is not a measurement you guess once and hope for. It is a plan you record, verify, and confirm at try-in. When the records are right, the bench can do its job, and the delivery appointment is short. That is the case everyone wants.
