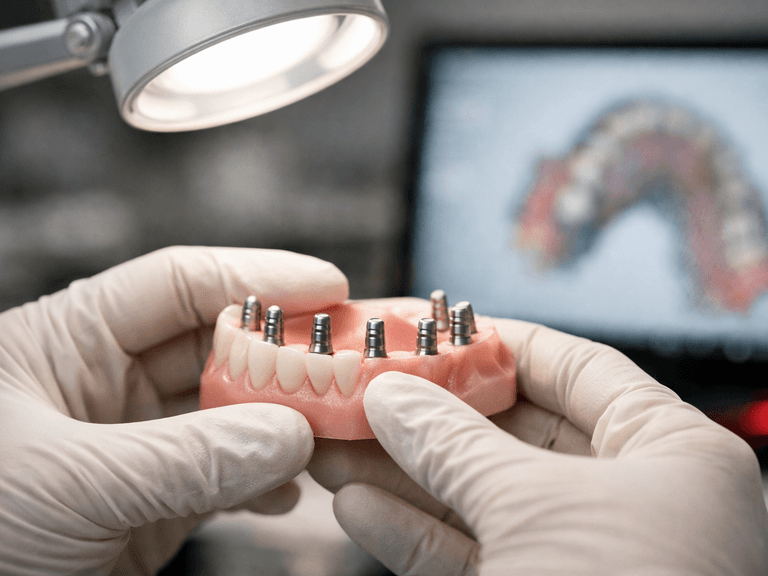

How to Scan Accurately for Full-Arch Restorations: A Lab's Field Guide

Full-arch scanning is where the digital workflow either pays off or blows up. When it works, a four-implant maxillary case moves from surgery to try-in in under three weeks. When it doesn't, the case stalls at design, the technician calls for a verification jig, and the patient sits with a healing cap for another month. The scan is the single point where 90% of full-arch remakes originate, and almost all of it is fixable at the chair.

This guide is written for the restorative dentist, the oral surgeon, and the prosthodontist who is scanning full-arch cases and sending them to a lab. It assumes an intraoral scanner (iTero, Trios, Primescan, Medit i700 or i900, or equivalent), scan bodies matched to the implant system, and a lab partner running open-STL workflows. It does not assume a specific software stack.

Why full-arch scans fail

A single-unit crown scan tolerates error. A full-arch scan does not. The math is stacking distortion: a scanner that captures with 15 micron accuracy at a single tooth accumulates to 150 to 300 microns of positional error across six scan bodies at the arch. That is well outside the passive fit tolerance for a screw-retained hybrid, which is roughly 50 microns before the framework begins to load the implants under tension.

The three failure modes we see at the bench:

1. Stitching drift. The scanner loses reference between scan bodies in the edentulous span. The design software will still produce a file. The file will not seat.
2. Scan body seating error. The scan body is not fully torqued or not fully seated on the multi-unit abutment. The library alignment is off by 200 to 400 microns.
3. Soft tissue interference. Mobile tissue moves between passes. The emergence profile in the design does not match the tissue that healed around the abutments.

Each of these is preventable. None of them are the scanner's fault.

The eight-step scan path for full-arch

This is the sequence we recommend to clinicians sending full-arch cases into our workflow. It works with any of the major scanners. It assumes multi-unit abutments are placed at the correct height and torqued before scanning.

1. Scan the healed tissue first, without scan bodies

Before placing scan bodies, capture the arch with just the multi-unit abutments visible. This gives the lab the emergence profile, the tissue architecture, and the abutment collar heights. A five-minute pass here saves a soft-tissue guessing game at design.

2. Place scan bodies and verify seating tactilely

Hand-tighten each scan body, then confirm seating with an explorer. A scan body that looks seated on the scanner display can be rotated 15 degrees or lifted 200 microns off the abutment platform. If it clicks and does not rotate, it is seated. If it wobbles, retorque.

3. Capture scan bodies in a triangulated path, not a linear one

Do not scan straight across the arch from second molar to second molar. Move in a Z pattern: distal scan body, cross to the contralateral canine, back to the ipsilateral central, out to the other distal. This forces the software to triangulate reference points rather than stitch a linear span, which is where drift accumulates.

4. Overlap 40 to 60% between passes

Every pass should overlap the previous pass by roughly half. Under 40% and the software has too few common reference points. Over 60% and you are wasting time without adding accuracy.

5. Capture the palate (maxillary) or the retromolar pads (mandibular)

These anatomical landmarks are stable, non-mobile, and give the lab a reference plane to verify the scan body positions against. Skipping the palate on a maxillary full-arch scan is a common shortcut that costs accuracy.

6. Do a second full pass to verify

Once the arch is captured, do a second complete pass. Not a touch-up. A second full arch scan, saved as a separate file. The lab compares the two and flags any scan body position that shifts more than 50 microns between passes. If the two scans disagree, we know before design starts.

7. Take a bite registration with the provisional or a bite jig

A CR bite on an edentulous arch is not a bite. It is a guess. If the patient has a provisional, scan the bite with the provisional in place. If not, fabricate a bite jig on the multi-units and scan that. This is the second-largest source of full-arch remake calls we get.

8. Photograph the mouth

Two shots: full smile, retracted anterior. Send them with the scan. Shade communication, midline reference, and lip support all come from the photos, not the STL.

What the lab does with a clean scan

When a case arrives with the eight steps completed, our full-arch workflow runs on a documented timeline: design review within 24 hours, digital try-in file back to the clinician within 72 hours, printed try-in shipping within 5 business days. The technician assigned to the case is named on the case sheet and reachable by direct line, so the design conversation happens with the person doing the work, not through a rep.

When the scan is unclean, the workflow adds 7 to 14 days for verification jig fabrication, a second patient appointment, and a rescan. That delay is not a lab problem to solve. It is a scan-path problem that the chair can prevent.

When to abandon the scan and go analog

Some cases should not be scanned. Full-arch on four implants placed at heavy divergent angles (>30 degrees), cases with significant tissue mobility that will not stabilize, and cases where the patient cannot hold still for a 90 second pass are all candidates for a conventional open-tray impression with a verification jig. The digital workflow is faster when it works, but a good analog impression beats a bad scan on every metric that matters.

The short version

Scan the tissue first. Verify scan body seating by hand. Move in a Z pattern. Overlap 50%. Capture the palate. Do the second pass. Register the bite with a jig or a provisional. Send the photos. Do those eight things and the case seats on the first appointment. Skip any of them and the case comes back to the chair for a rescan.

For clinicians running more than two full-arch cases a month, we run a 45-minute scan-path calibration call with the technician who would be assigned to the cases. No sales pitch. Just the scan sequence, the failure modes we see in your specific scanner, and a recorded reference clinicians can share with the assistants doing the captures.
